Platformer controller
A recipe for a side-scrolling player built on the character controller. The script is the one that runs Lantern Grove's hero: it accelerates instead of snapping to speed, forgives late and early jump presses, jumps higher while the button is held, dashes once per jump and returns to safe ground after a fall. Start from the platformer template or Lantern Grove and add it to the player.
The script
using Talesmith.Runtime.Scenes;
namespace LanternGrove;
/// <summary>Runs with Move, jumps with Jump (higher while held), dashes with Dash and returns to safe ground after a fall.</summary>
public sealed class PlayerController : Script
{
[Header("Running")]
[Range(0, 800)]
public float RunSpeed = 320;
[Range(0, 10000)]
[Tooltip("How quickly the player reaches running speed on the ground, in units per second squared.")]
public float Acceleration = 2800;
[Range(0, 10000)]
public float AirAcceleration = 1600;
[Header("Jumping")]
[Range(0, 2000)]
public float JumpSpeed = 860;
[Range(0, 6000)]
public float Gravity = 2300;
[Range(1, 4)]
[Tooltip("Gravity is multiplied by this while falling or once the jump button is released, for snappier jumps.")]
public float FallGravityScale = 1.6f;
[Range(0, 3000)]
public float MaxFallSpeed = 1150;
[Range(0, 0.5)]
[Tooltip("Seconds after walking off a ledge during which a jump still works.")]
public float CoyoteTime = 0.1f;
[Range(0, 0.5)]
[Tooltip("Seconds a jump pressed just before landing is remembered.")]
public float JumpBuffer = 0.12f;
[Header("Dash")]
[Range(0, 2000)]
public float DashSpeed = 820;
[Range(0, 1)]
public float DashTime = 0.16f;
[Range(0, 3)]
public float DashCooldown = 0.45f;
[Header("Falling")]
[Tooltip("Below this height the player returns to the last ground it stood on.")]
public float FallLimit = 832;
private Vector2 _velocity;
private Vector2 _safeGround;
private float _coyote;
private float _buffer;
private float _dashLeft;
private float _dashWait;
private bool _dashQueued;
private bool _airDashUsed;
private bool _jumpHeld;
/// <summary>1 when facing right, -1 when facing left.</summary>
public int Facing { get; private set; } = 1;
public bool IsGrounded { get; private set; }
public Vector2 Velocity => _velocity;
protected override void OnStart() => _safeGround = Position;
protected override void Update()
{
if (Input.WasPressed("Jump"))
_buffer = JumpBuffer;
if (Input.WasPressed("Dash"))
_dashQueued = true;
_jumpHeld = Input.IsDown("Jump");
if (Input.WasPressed("Restart"))
_ = Scenes.ReloadAsync(SceneTransition.Default);
ref var sprite = ref GetComponent<Sprite>();
sprite.FlipX = Facing < 0;
ref var animator = ref GetComponent<SpriteAnimator>();
var animation = _dashLeft > 0 ? "run"
: !IsGrounded ? _velocity.Y < 0 ? "jump" : "fall"
: MathF.Abs(_velocity.X) > 20 ? "run" : "idle";
if (animator.Animation != animation)
animator.Animation = animation;
}
protected override void FixedUpdate()
{
var dt = Time.DeltaTime;
var move = Input.Vector("Move").X;
if (move != 0)
Facing = move > 0 ? 1 : -1;
_coyote = IsGrounded ? CoyoteTime : _coyote - dt;
_buffer -= dt;
_dashWait -= dt;
if (_dashQueued && _dashWait <= 0 && !_airDashUsed)
{
_dashLeft = DashTime;
_dashWait = DashCooldown;
_airDashUsed = !IsGrounded;
_velocity = new Vector2(Facing * DashSpeed, 0);
Audio.Play("audio/jump.wav", new SoundOptions(Volume: 0.35f, Pitch: 1.6f));
}
_dashQueued = false;
if (_dashLeft > 0)
{
_dashLeft -= dt;
}
else
{
var target = move * RunSpeed;
var rate = IsGrounded ? Acceleration : AirAcceleration;
_velocity.X = MoveTowards(_velocity.X, target, rate * dt);
var falling = _velocity.Y > 0 || !_jumpHeld;
_velocity.Y = MathF.Min(_velocity.Y + Gravity * (falling ? FallGravityScale : 1) * dt, MaxFallSpeed);
if (_buffer > 0 && _coyote > 0)
{
_velocity.Y = -JumpSpeed;
_buffer = 0;
_coyote = 0;
Audio.Play("audio/jump.wav", new SoundOptions(Volume: 0.5f));
}
}
var hits = Physics.MoveCharacter(Entity, _velocity * dt);
if ((hits & CharacterCollisions.Above) != 0 && _velocity.Y < 0)
_velocity.Y = 0;
if ((hits & CharacterCollisions.Sides) != 0)
_velocity.X = 0;
IsGrounded = GetComponent<CharacterController2D>().IsGrounded;
if (IsGrounded)
{
_velocity.Y = MathF.Min(_velocity.Y, 0);
_airDashUsed = false;
if (OnSolidGround())
_safeGround = Position;
}
if (Position.Y > FallLimit)
Respawn();
}
private void Respawn()
{
Audio.Play("audio/fall.wav", new SoundOptions(Volume: 0.5f));
Position = _safeGround;
_velocity = Vector2.Zero;
_dashLeft = 0;
}
private bool OnSolidGround()
{
var filter = QueryFilter.Default with { Ignore = Entity };
var feet = Position + new Vector2(0, -4);
return Physics.RayCast(feet + new Vector2(-24, 0), Vector2.UnitY, 16, filter, out _)
&& Physics.RayCast(feet + new Vector2(24, 0), Vector2.UnitY, 16, filter, out _);
}
private static float MoveTowards(float current, float target, float maxDelta) =>
MathF.Abs(target - current) <= maxDelta ? target : current + MathF.Sign(target - current) * maxDelta;
}
The sounds it plays are Lantern Grove's audio/jump.wav and audio/fall.wav. Use your own paths, or remove the Audio.Play lines.
Set up the scene
- Add the input actions below in Project Settings › Input, or merge them into
assets/config/input.json. - Give the map entity a tile layer with the Collision role and paint the ground on it. See Collision and objects.
- Select the player entity and add the components in the table, then add the Player Controller script with Add component.
- Press CtrlP and run, jump and dash. Change the fields while playing until the jump feels right, then copy the values back after you stop, since play mode changes are not saved.
{
"actions": {
"Move": {
"kind": "vector",
"bindings": [
{ "type": "vector", "up": "W", "down": "S", "left": "A", "right": "D" },
{ "type": "vector", "up": "Up", "down": "Down", "left": "Left", "right": "Right" }
]
},
"Jump": { "kind": "button", "bindings": [ { "type": "key", "key": "Space" }, { "type": "key", "key": "W" }, { "type": "key", "key": "Up" } ] },
"Dash": { "kind": "button", "bindings": [ { "type": "key", "key": "LeftShift" }, { "type": "key", "key": "X" } ] },
"Restart": { "kind": "button", "bindings": [ { "type": "key", "key": "R" } ] }
}
}
| Component | Settings in Lantern Grove |
|---|---|
| Transform | Where the player starts. |
| Sprite | The hero texture, sprite hero-0, Layer 310 so the player draws in front of other entities. Its origin is at the feet. |
| Sprite Animator | The same texture, with animations named idle, run, jump and fall in its import settings. |
| Collider 2D | Box, Size 30 × 62, Offset (0, -31) so the box stands on the feet, Friction 0 so walls do not grab the player. |
| Character Controller 2D | Step Offset 8, Ground Snap Distance 6, Interpolate on. |
| Scripts | Player Controller. |
Interpolation draws the player between its last two fixed-step positions, so it moves smoothly on a 144 Hz display even though it only moves 60 times a second.
How it works
Input in Update, movement in FixedUpdate
FixedUpdate runs zero, one or several times per frame, at a steady 60 steps per second, and the physics world steps right after it. Moving the character there makes jumps the same height at any frame rate. Input is different: WasPressed is true only during the frame the key went down, and a frame with no fixed step would miss it. So Update records presses (_buffer, _dashQueued) and the held state (_jumpHeld), and FixedUpdate consumes them. The lifecycle and time pages explain both loops.
Inside FixedUpdate, Time.DeltaTime is the fixed step, so dt is always 1/60 s with the default settings.
Running
MoveTowards changes the horizontal velocity by at most Acceleration × dt per step, so the player speeds up and stops over a few frames instead of instantly. A lower AirAcceleration makes direction changes in the air weaker than on the ground, which reads as momentum.
Physics.MoveCharacter moves the collider by the velocity times the step and slides along whatever it hits. It returns the sides it touched: hitting a ceiling (Above) cancels upward speed and hitting a wall (Sides) cancels horizontal speed, so the player does not keep pushing into it. CharacterController2D.IsGrounded is true when the move ended standing on ground no steeper than the slope limit. See Physics from scripts.
Coyote time and the jump buffer
Two timers make jumping forgiving:
_coyoteis reset toCoyoteTimeevery step the player stands on ground and counts down in the air. A jump pressed just after running off a ledge still works._bufferis set toJumpBufferwhen Jump is pressed and counts down every step. A press shortly before landing is kept and fires on the first grounded step.
The jump happens when both timers are positive, and both are cleared so one press gives one jump.
Variable jump height and falling
Gravity is multiplied by FallGravityScale while the player falls or once the jump button is no longer held. Releasing Jump early therefore ends the rise sooner and gives a short hop, holding it gives the full jump, and every fall is a little faster than the rise, which feels less floaty. MathF.Min caps the downward speed at MaxFallSpeed; Y points down in Talesmith, so falling speed is positive.
Dash
A queued dash starts when the cooldown has passed and the player has not dashed in the air since last touching the ground. For DashTime seconds the velocity stays horizontal at DashSpeed and gravity is skipped, then normal movement resumes. Landing resets _airDashUsed.
Safe ground and falling out of the level
When the player is grounded and both feet are over solid ground, checked with two short ray casts that ignore the player itself, the position is remembered. Falling below FallLimit puts the player back there. Checking both feet stops the player from respawning on the very edge it fell from.
Animations by state
Update picks an animation name from the state: run while dashing, jump or fall in the air by the sign of the vertical speed, then run or idle on the ground. It assigns SpriteAnimator.Animation only when the name changes, because assigning switches the clip. Sprite.FlipX mirrors the sprite to face the last direction moved. Both components are reached with GetComponent, which returns a reference, so the changes apply to the entity directly. See Working with components.
Facing, IsGrounded and Velocity are public read-only properties. They are not saved or shown in the inspector, but other scripts read them: Lantern Grove's camera rig looks ahead in the Facing direction.
Compared with the other samples

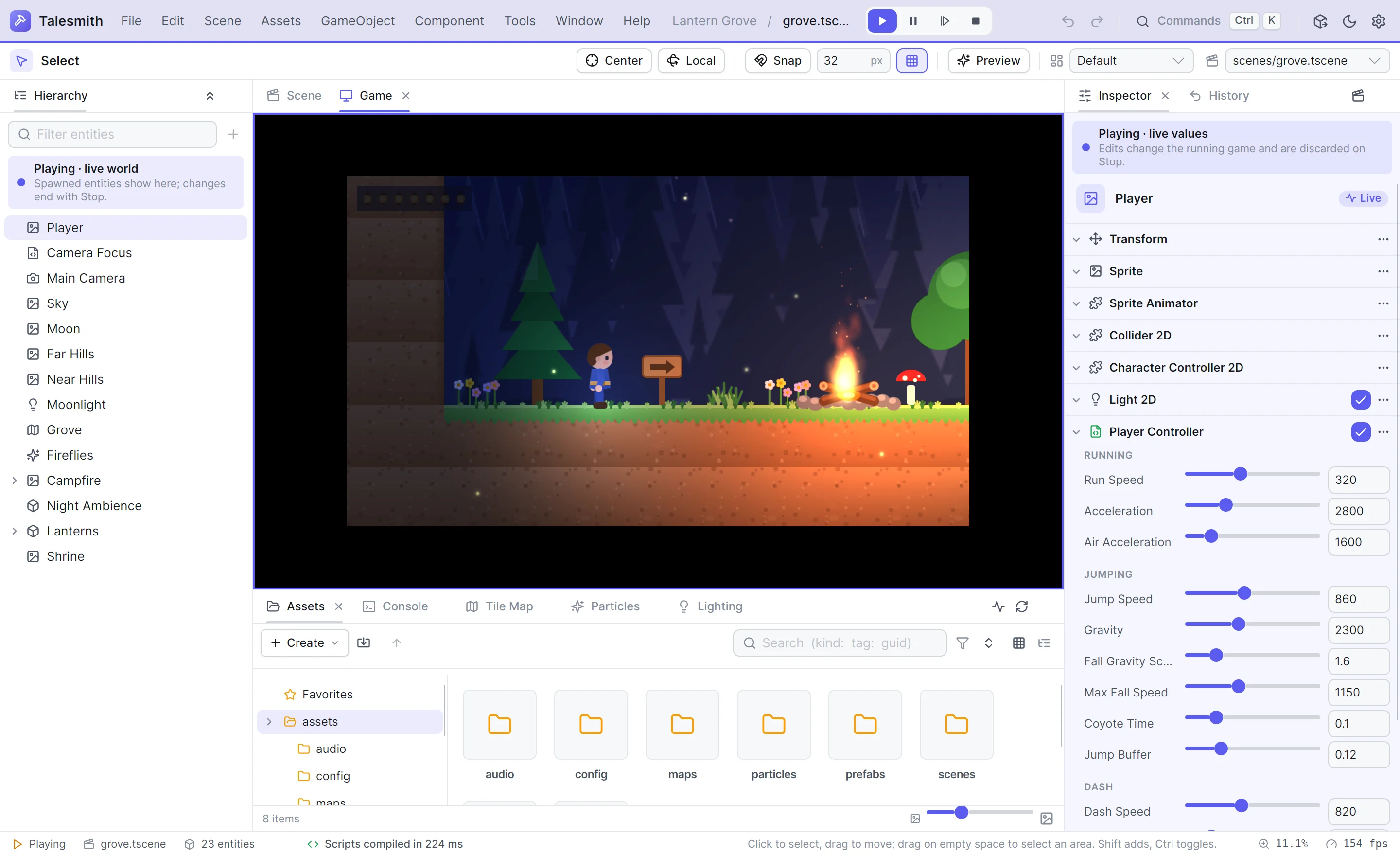

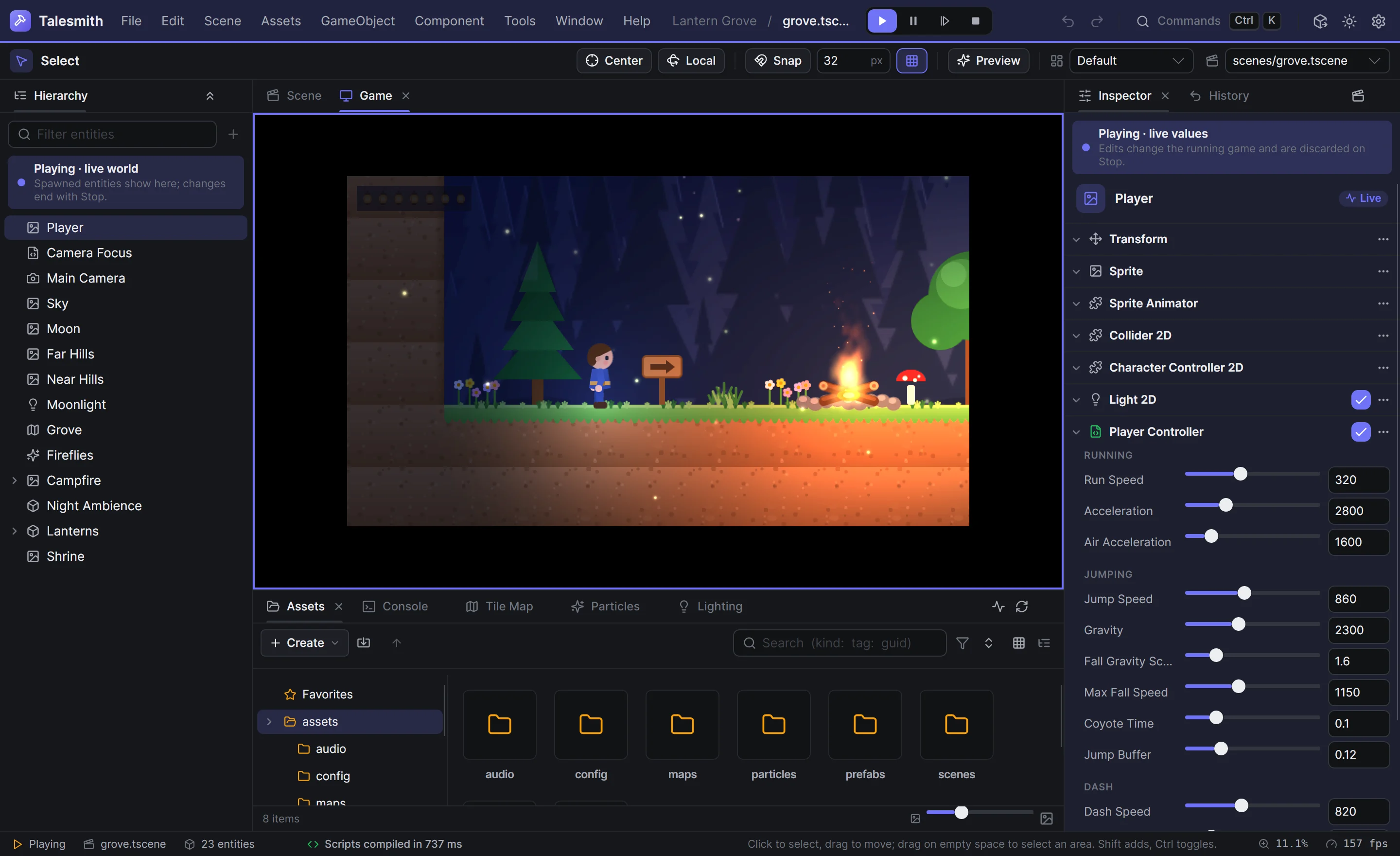

- Lantern Grove uses this script unchanged, together with a follow camera, lantern pickups and a drawn HUD. Open
samples/LanternGrovein the editor to see the whole scene. - Isle Hopper builds the same kind of hero as ECS code in a plugin: a
HeroInputSysteminPreUpdatereads input into a component and aHeroMovementSysteminFixedUpdatemoves it. The split between sampling input once per frame and moving once per step is the same. - The short controller in Your first script moves the entity directly in
Update. That is fine for a top-down character without collision, but anything that collides belongs inFixedUpdatewithMoveCharacter.
