Scripting overview

Talesmith games are written in C#. This section starts with scripts, classes you attach to entities in the editor, then explains the engine concepts underneath them and ends with recipes for common gameplay. It also helps you decide between a script, a system and a plugin.

What a script is

A script is a C# class that derives from Script. You attach it to an entity in the inspector, and while the game plays, Talesmith calls the methods you override: Update every frame, FixedUpdate every physics step, OnTriggerEnter when something walks into the entity, and so on. Public fields are saved with the scene and shown in the inspector, so designers tune them without touching code.

assets/scripts/Spinner.cs

namespace MyGame;

/// <summary>Turns the entity around its position.</summary>
public sealed class Spinner : Script
{
    [Range(-720, 720)]
    [Tooltip("Degrees per second; negative values turn the other way.")]
    public float DegreesPerSecond = 90;

    protected override void Update() => Transform.Rotation += MathHelper.ToRadians(DegreesPerSecond) * Time.DeltaTime;
}

Transform, Time, Input, Physics, Audio, Events and the rest of the engine are properties of the script, so most gameplay needs no setup code at all. Your first script builds one from scratch.

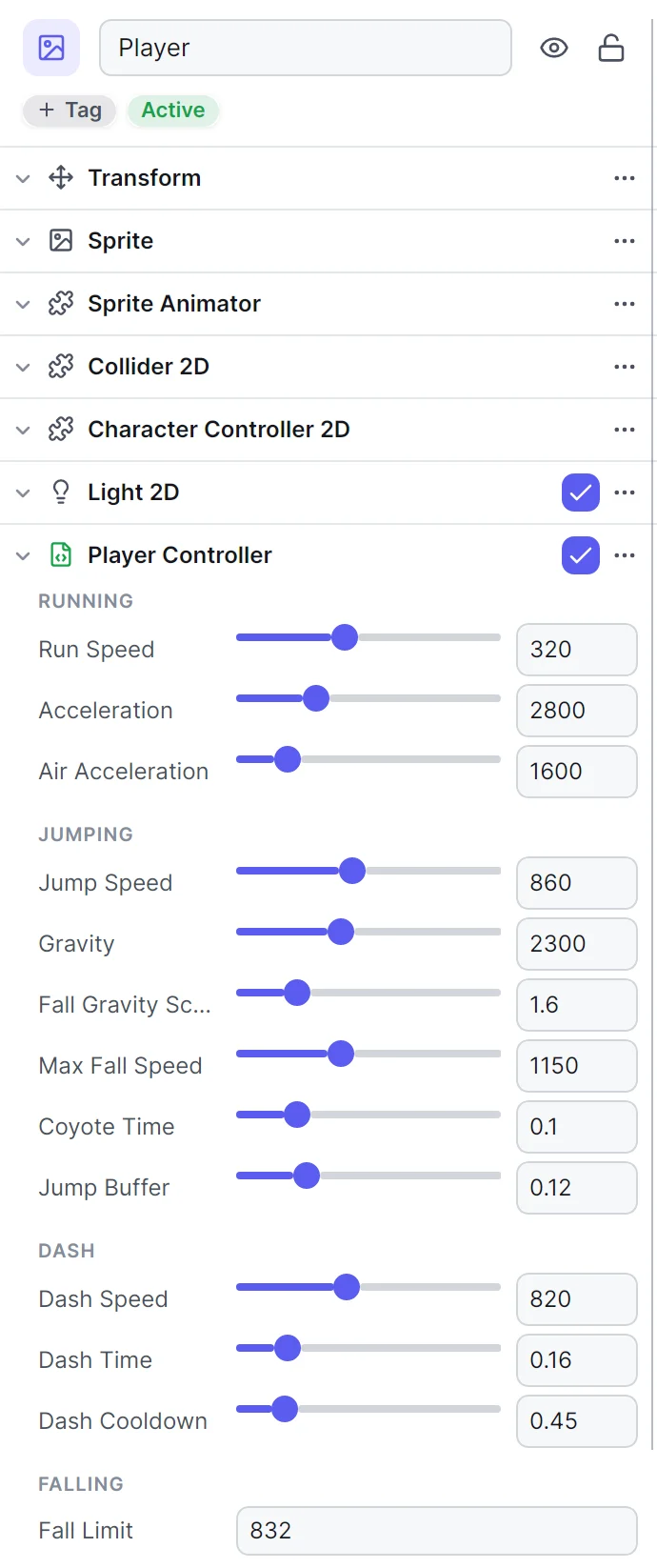

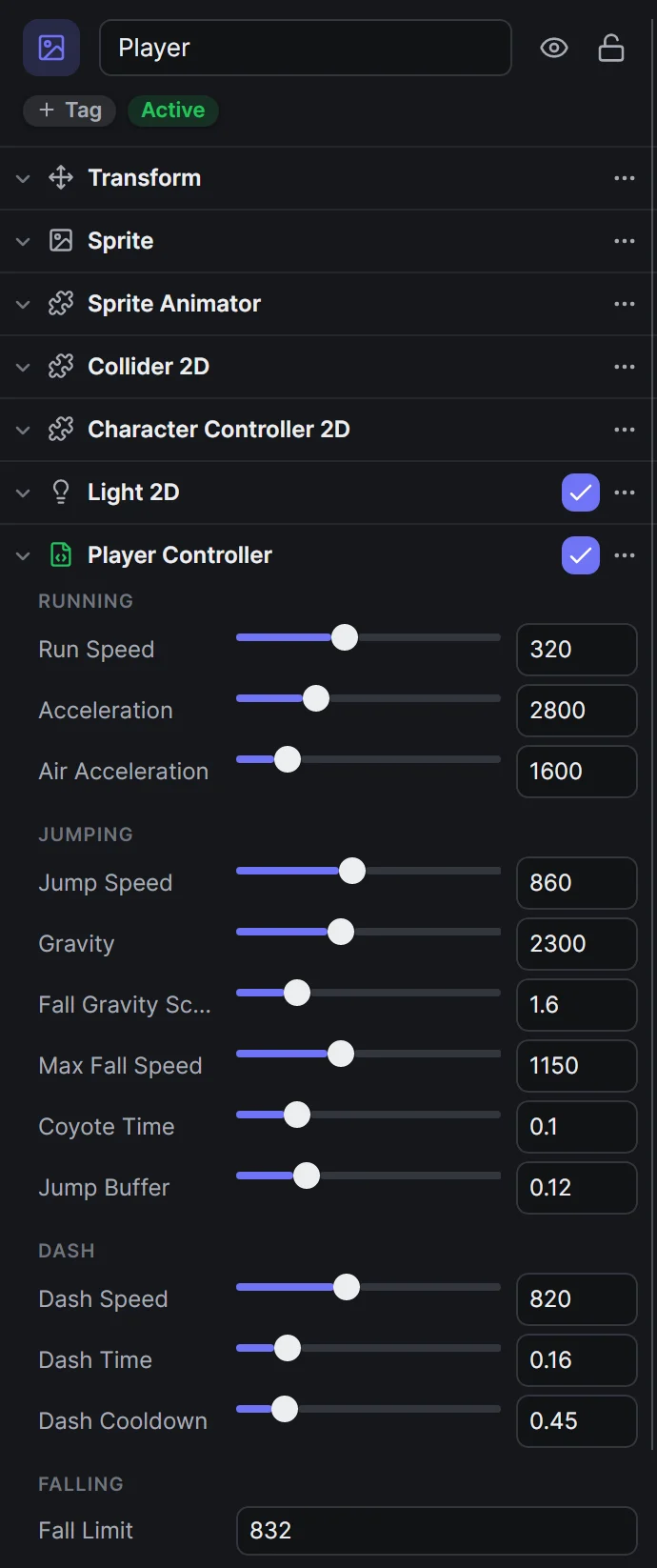

Lantern Grove's Player Controller in the inspector: every public field is a saved, editable value.

Scripts, systems and plugins

Talesmith has three places to put game code. They share one engine, so you can start with a script and move code later without rewriting it.

	Scripts	Components and systems	Plugins
What it is	A class deriving from Script, attached to individual entities	Plain data structs on entities, and an ISystem that processes every entity with them each frame	A separately built assembly with an IPlugin that registers services, systems, scenes and UI
Use it for	Behavior of one kind of entity: a player controller, a door, a pickup, a spawner	Thousands of similar entities: bullets, swarms, crowds, parallax layers	Engine features, Avalonia overlays and menus, code scenes, editor tools, services shared by several projects
Where it lives	assets/scripts of the project	assets/scripts too, or a plugin	Its own project, built into assets/plugins/<name>
How it is built	The editor compiles it when you save	Same as scripts when it lives there	With dotnet build, outside the editor
Hot reload while playing	Yes, keeping each script's state	No; play mode asks to restart	No
Cost per entity	One virtual call per overridden method	A tight loop over packed arrays	Whatever it registers

Script files can declare systems, components and scene listeners as well; the game registers them exactly as if a plugin had. Lantern Grove does this for its HUD and parallax. The price is paid in play mode: once the script assembly declares any of them, every script change while playing asks you to restart play mode instead of swapping the code in. The entities and components and systems pages explain when that pays off, and the Plugins section covers everything scripts cannot do, such as Avalonia controls, which scripts cannot reference.

How scripts are compiled

Every .cs file under assets/scripts and its subfolders is part of one script assembly, except files in bin, obj and hidden folders. The editor compiles it in memory with Roslyn 250 ms after files stop changing, reports errors and warnings in the console with their file and line, and swaps the new code into a running game when it can. See Compiling and hot reload.

MyGame/
  MyGame.Scripts.csproj     written by the editor so your IDE has IntelliSense
  assets/
    scripts/
      PlayerController.cs
      Pickups/Coin.cs       namespace MyGame.Pickups
    scripts/bin/            Game.Scripts.dll in exported games

New scripts get a namespace made from the project name and the folders between assets/scripts and the file, such as MyGame.Pickups. Every script can use these namespaces without a using directive: System, System.Collections.Generic, System.Linq, System.Numerics, System.Threading.Tasks, Talesmith.Assets, Talesmith.Assets.Textures, Talesmith.Audio, Talesmith.Authoring, Talesmith.Ecs, Talesmith.Input, Talesmith.Mathematics, Talesmith.Physics, Talesmith.Runtime.Components, Talesmith.Scripting and Talesmith.Systems. Anything else, such as Talesmith.VFX for particles or Talesmith.Runtime.Tweens for easing curves, needs a using.

Scripts compile against the engine's runtime assemblies and the project's enabled plugins, never the editor. Exported games carry the compiled scripts as assets/scripts/bin/Game.Scripts.dll, compiled by the export with the configuration of its build profile.

Before you start

• You need to know C#: classes, properties, lambdas and async/await. The engine follows ordinary .NET conventions.
• You do not need the .NET SDK to write scripts: the editor compiles them itself. You need it to build Talesmith from source, to build plugins, and for your IDE to load the generated project.
• Use a C# editor. Assets › Open C# project opens the generated project in your code editor (Visual Studio Code or Rider when installed, or the command set in Settings) with completion for every engine type, and double-clicking an error in the console opens the file at its line.

In this section

C# scripts

Write, attach and debug scripts: the lifecycle, fields, components, input, time, events, waiting, sound, physics and tile maps.

Engine concepts

What runs underneath: entities and systems, scenes, the game loop and its threads, physics, particles, lighting, rendering and game UI.

Recipes

Complete, working gameplay: a platformer controller, hex movement, pickups, spawners, a follow camera and a HUD.
