Editor plugins

Editor code lives in a second assembly that games never load. This page explains how the editor loads that assembly next to the runtime one, the IEditorPlugin class that registers editor features, and the editor services they can use. It then gives the Spinners plugin from Your first plugin an editor part with a panel, a command, a viewport tool and a gizmo.

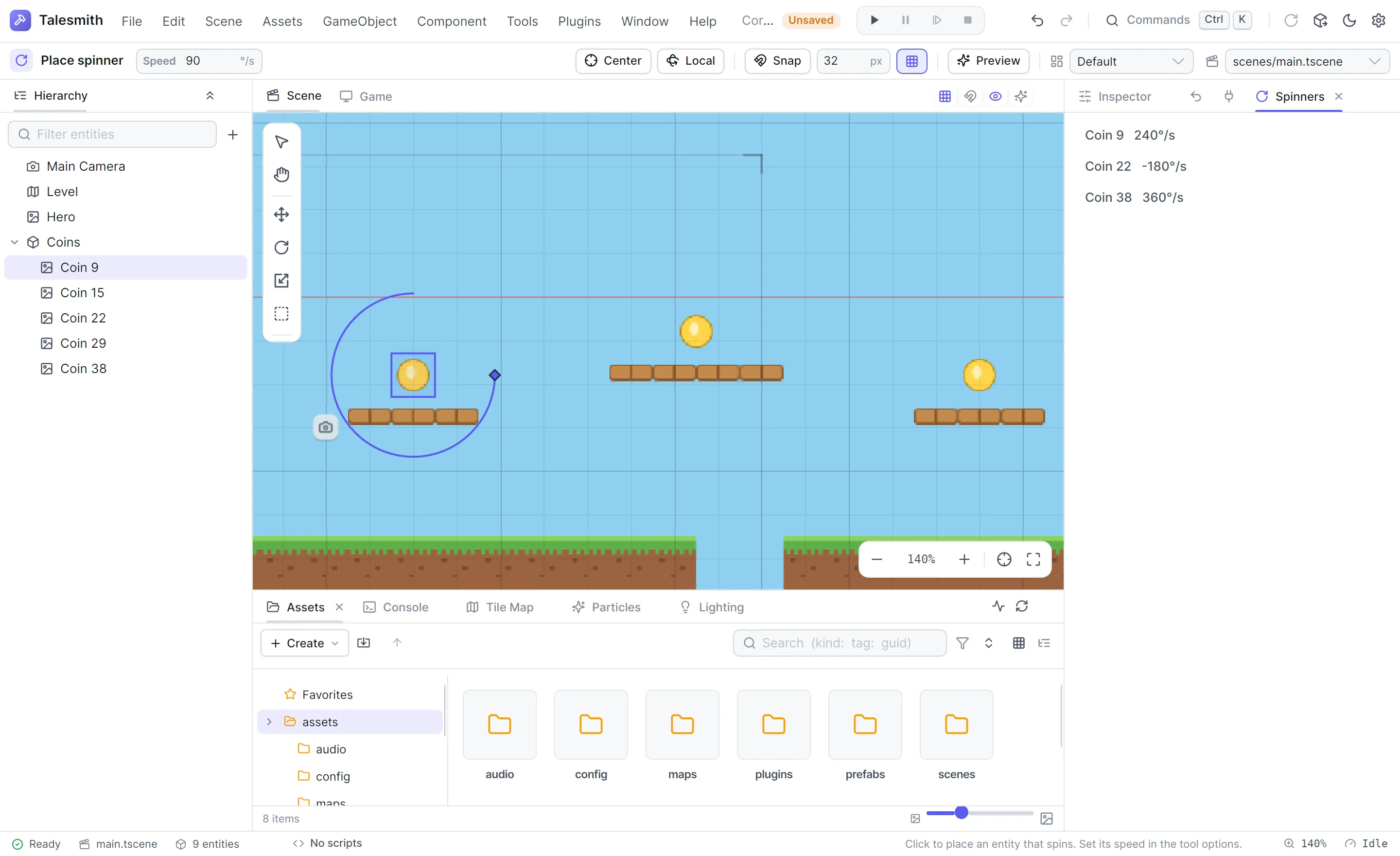

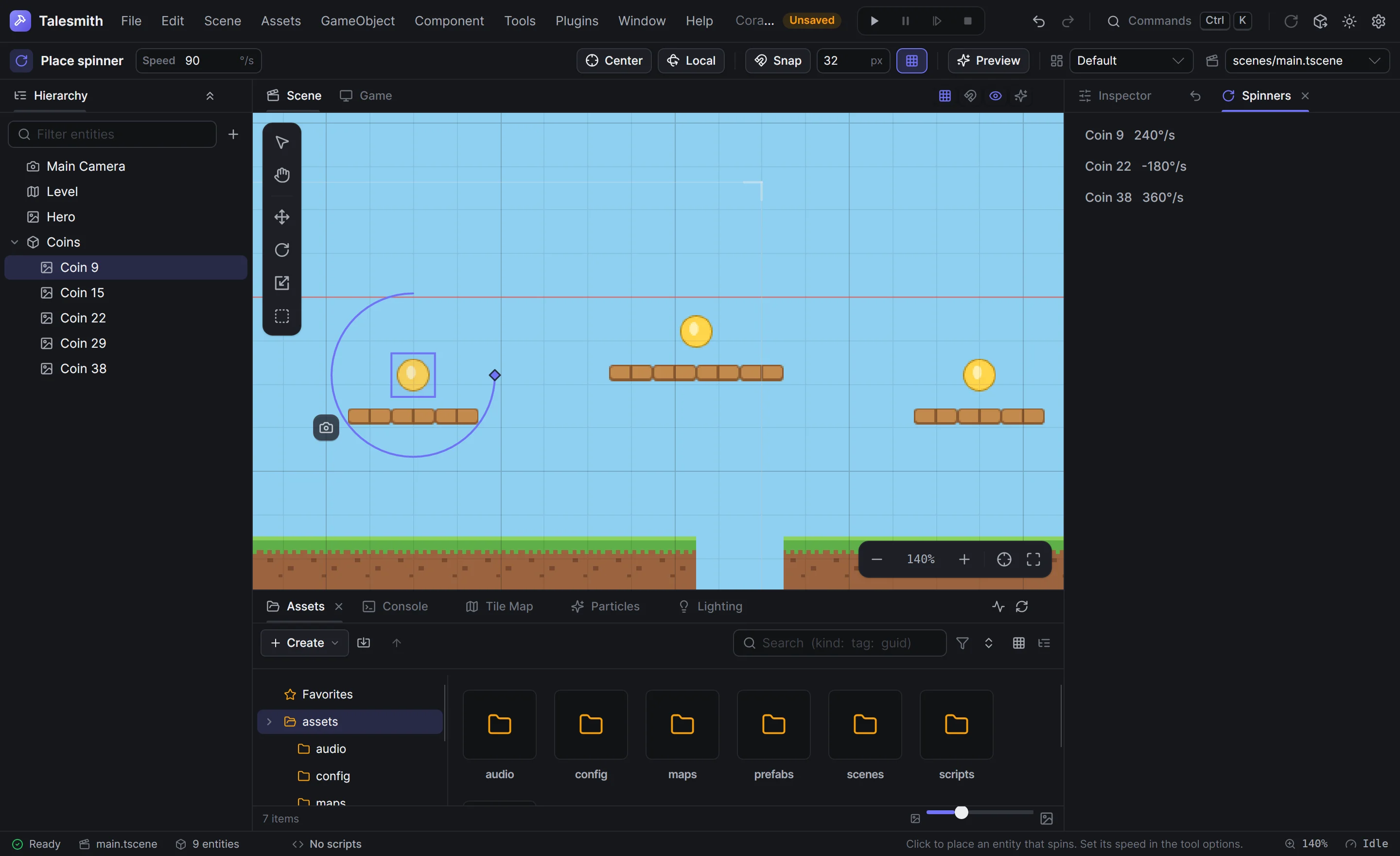

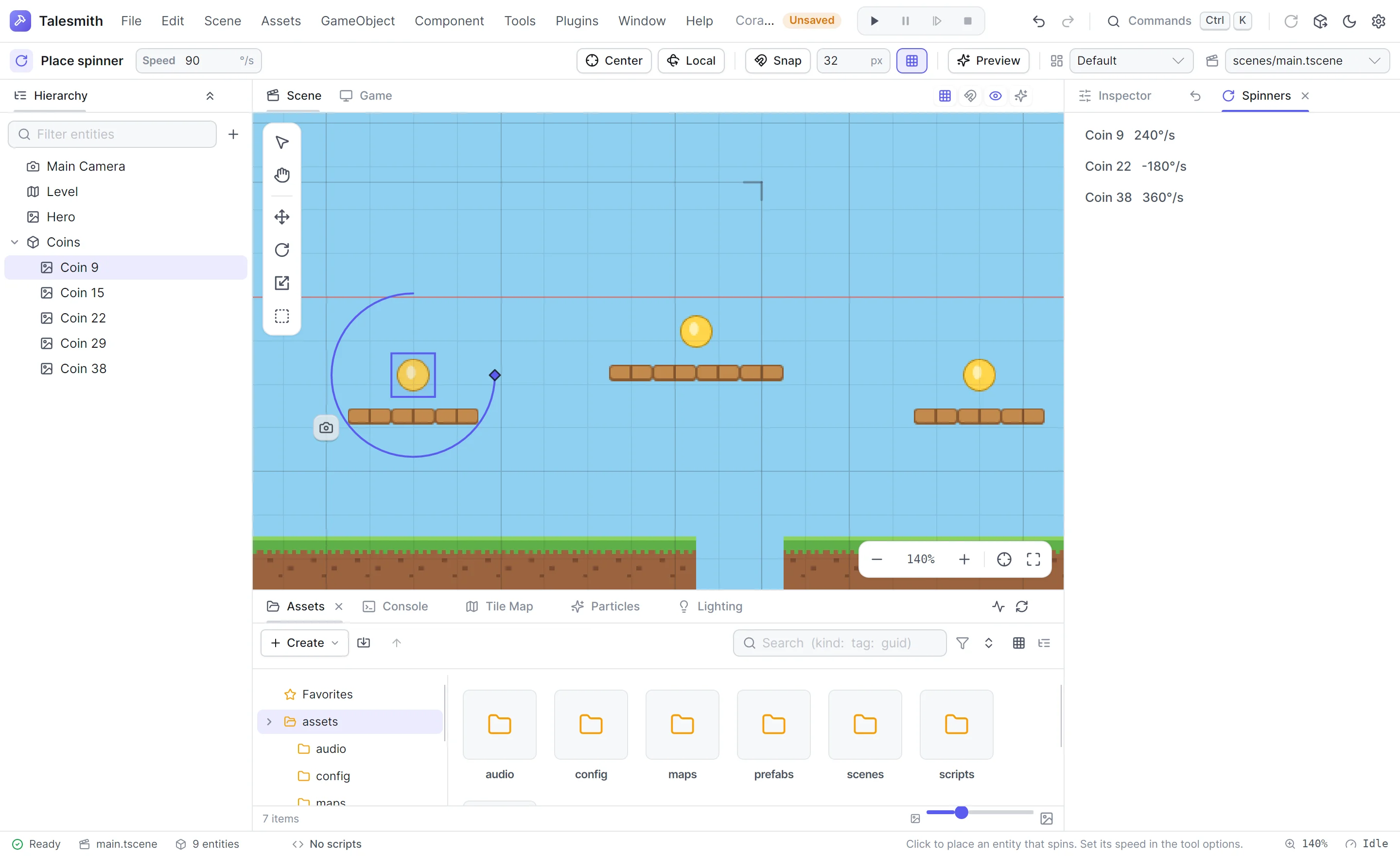

The editor with the Spinners editor plugin: the Spinners panel listing three coins, the Place spinner tool selected with its Speed option, an arc gizmo with a handle around the selected coin, and an Add spinner button in the app bar — The Spinners editor plugin: its Spinners panel on the right, the Place spinner tool active in the tool rail with its speed option, the gizmo of the selected spinner and the Add spinner button in the app bar.

The editor assembly

A plugin's editor part is a class library named by editorAssembly in plugin.json, with one or more public classes implementing IEditorPlugin:

public interface IEditorPlugin
{
    void ConfigureServices(IServiceCollection services);
}

When a project opens, the editor:

Loads the project's plugins with their editor assemblies, each plugin's two assemblies in the same load context, so the editor part uses the runtime part's types as they are.
Creates one instance of every public, non-abstract IEditorPlugin class in each loaded plugin's editor assembly, with its parameterless constructor.
Registers the editor's own services, then calls ConfigureServices on each editor plugin with the same service collection.
Builds the project's editor services and opens the window. Closing the project disposes them, so nothing leaks into the next project.

Editor plugins register with the same calls the editor uses for its own panels and tools, and because they register after the editor, a registration of an editor service replaces the editor's. The pages in this section cover each extension point.

Rules for the two assemblies:

The runtime assembly must never reference the editor assembly or editor-only assemblies (Talesmith.Editor, Talesmith.UI, Talesmith.Build, Talesmith.Scripting.Compiler, Talesmith.App). Exported games do not contain them; the engine warns when it finds such a reference.
The editor assembly may reference the runtime assembly freely.
Declare the editorUi permission; without it the plugin's card warns.
When the editor assembly is missing or cannot be loaded, the runtime part still loads and the card says the editor features are unavailable. When an editor plugin cannot be created or its ConfigureServices throws, the console says so, the plugin's card shows Editor errors, and the editor opens without that editor plugin. Code a plugin contributes to the editor is guarded in the same way after that; see Errors in editor code.

Builds leave the editor assembly out of exported games; see Packaging.

Add an editor part to Spinners

Create the folder plugins-src/Spinners.Editor next to plugins-src/Spinners, with the project file from The project file.
Add the five files below.

In plugins-src/Spinners/plugin.json, add the editor assembly, the editorUi permission and the new extension points:

"editorAssembly": "Spinners.Editor.dll",
"permissions": [ "runtimeScene", "editorUi" ],
"extensions": [ "components", "systems", "editor.panels", "editor.commands", "editor.tools" ],

Build both parts with dotnet build plugins-src/Spinners.Editor, which builds the runtime project first and installs both into assets/plugins/spinners.
In the Plugins panel, click Rescan the plugins folder, then Reload now.

The project now has an Add spinner button in the app bar and in the Plugins menu, a Place spinner tool in the scene viewport's tool rail (J), and a Spinners panel. Selecting an entity with a Spinner shows its gizmo. The editor saves a project's layout as soon as you open or move a panel, as you did with the Plugins panel, and a saved layout does not contain panels that did not exist yet: open the new panel with Window › Panels › Spinners, and it docks where the default layout puts it.

The plugin class registers four features:

plugins-src/Spinners.Editor/SpinnersEditorPlugin.cs
using Microsoft.Extensions.DependencyInjection;
using Talesmith.Editor.Commands;
using Talesmith.Editor.Panels;
using Talesmith.Editor.Plugins;
using Talesmith.Editor.Viewport.Gizmos;
using Talesmith.Editor.Viewport.Tools;
using Talesmith.UI;

namespace Spinners.Editor;

public sealed class SpinnersEditorPlugin : IEditorPlugin
{
    public void ConfigureServices(IServiceCollection services)
    {
        services.AddEditorPanel<SpinnersPanel>(new EditorPanelInfo("spinners", "Spinners", Icons.RotateCw, DockLocation.Right) { Order = 40 });
        services.AddEditorCommands<SpinnerCommands>();
        services.AddViewportTool<SpinnerTool>();
        services.AddGizmoProvider<SpinnerGizmo>();
    }
}

The other four files, each explained on its page:

SpinnersPanel.cs, a panel listing the scene's spinners: Panels.
SpinnerCommands.cs, the Add spinner command: Commands, menus and the toolbar.
SpinnerTool.cs, the Place spinner tool: Viewport tools.
SpinnerGizmo.cs, the speed gizmo and its drag handle: Gizmo providers.

Editor services

Editor plugin classes are created by dependency injection, so their constructors can ask for editor services. The ones plugins use most:

Service	What it does
`ISceneDocumentService`	The open scene (`Active`, a `SceneDocumentModel`), opening, saving, and `ActiveChanged`
`SceneDocumentModel`	The open scene's entities, with undoable edits: `CreateEntity`, `AddComponent`, `SetProperty`, `DeleteEntities`, and a `Changed` event
`ISelectionService`	Selected entities (by document id), assets and other objects; `SelectEntity`, `Changed`
`IUndoService`	Undo and redo; `BeginTransaction("…")` groups edits into one step
`IEditWorld`	The edit game's world that mirrors the open scene, and the mapping between document ids and runtime entities
`IProjectService`	The project's folders, settings, asset database, plugins and game sessions
`IPlayModeService`	Play mode: state, the play game, `Dispatch` and `InvokeAsync` to run code on the game thread
`IConsole`	Messages in the Console panel, with links to entities, assets and files
`IDialogService`, `IToastService`	Modal dialogs and notifications
`LayoutService`	The dock layout; `ShowPanel(id)`
`EditorCommandRegistry`	Every command; `TryExecute(id)`
`PluginManager`	The project's plugins and their settings
`ICodeEditor`	Opens files in the user's code editor
`StatusBarViewModel`	The status bar; `AddItem` for items of your own

Editor code runs on the UI thread, and so does the edit game, so panels, tools and gizmos read and change it directly. The play game runs on its own thread: reach it only through IPlayModeService.Dispatch and InvokeAsync, and copy what you show into plain values there.

Play session contributors

An IPlaySessionContributor is asked before every play session starts. It can refuse, with a reason the editor shows as a notification, or add to the session's request. The editor's script compiler is one: it waits for a compilation in progress and refuses while scripts have errors.

StoppedSpinnerCheck.cs
using Spinners;
using Talesmith.Editor.Documents;
using Talesmith.Editor.Inspector;
using Talesmith.Editor.PlayMode;
using Talesmith.Editor.Projects;
using Talesmith.Runtime.Serialization;

namespace Spinners.Editor;

/// <summary>Refuses to play while a spinner in the open scene has a speed of 0.</summary>
public sealed class StoppedSpinnerCheck(ISceneDocumentService documents) : IPlaySessionContributor
{
    private static readonly string SpinnerType = ComponentRegistry.GetTypeName(typeof(Spinner));

    public ValueTask<string?> PrepareAsync(CancellationToken cancellationToken)
    {
        var stopped = documents.Active?.Entities.FirstOrDefault(e => e.FindComponent(SpinnerType) is { } spinner && JsonValues.Number(spinner.Data["speed"]) == 0);
        return ValueTask.FromResult(stopped is null ? null : $"{stopped.Name} is a spinner with a speed of 0.");
    }

    public GameSessionRequest Contribute(GameSessionRequest request) => request;
}

services.AddSingleton<IPlaySessionContributor, StoppedSpinnerCheck>();

PrepareAsync may wait for work in progress. Contribute returns the request, changed or not; its Configure property takes an action that configures the play game further after its plugins, such as registering a debugging service only in play mode. Contributors are asked in registration order.

Close guards

An ICloseGuard can keep the project or the editor from closing, for example to ask about unsaved changes of your own:

UnsavedNotesGuard.cs
using Talesmith.Editor.Hosting;
using Talesmith.UI.Services;

namespace Spinners.Editor;

/// <summary>Asks before closing the project while the notes have unsaved changes.</summary>
public sealed class UnsavedNotesGuard(SpinnerNotes notes, IDialogService dialogs) : ICloseGuard
{
    public async Task<bool> CanCloseAsync()
    {
        if (!notes.HasUnsavedChanges)
            return true;
        var choice = await dialogs.AskToSaveChangesAsync("Spinner notes");
        if (choice == UnsavedChangesChoice.Cancel)
            return false;
        if (choice == UnsavedChangesChoice.Save)
            await notes.SaveAsync();
        return true;
    }
}

services.AddSingleton<SpinnerNotes>();
services.AddSingleton<ICloseGuard, UnsavedNotesGuard>();

Guards are asked in registration order when the project closes, reloads (including Reload now in the Plugins panel) or the editor quits. Returning false keeps the project open.
