Particles
Fire, smoke, sparks, rain, snow and magic are particle effects: many small sprites that a Particle Emitter component spawns, moves and fades. Effects are built from modules, each switched on when you need it, and can be saved as .tparticles presets to reuse. This page covers adding an emitter, the preset gallery, the particle editor with its live preview, the modules, playback settings, presets, and how many particles a scene can afford.
Add an effect
Any of these creates an entity with a Particle Emitter:
- GameObject › 2D Object › Particle Emitter and one of the built-in effects, or the same items in the hierarchy's context menu. The emitter is created in the middle of the view, or under the entity you right-clicked.
- With nothing selected, click an effect in the preset gallery at the bottom of the Particles panel.
- Drag a
.tparticlespreset from the Assets panel into the viewport or onto the hierarchy. The emitter plays the preset.
To add an emitter to an existing entity, such as a torch sprite, use Add component › Particle Emitter. An emitter follows its entity's position, rotation and scale, so parenting it to a moving entity makes the effect move along.
The built-in effects are Fire, Smoke, Sparks, Magic sparkle, Rain, Snow, Dust puff and Explosion. They use textures the engine generates, so they work without any image assets.

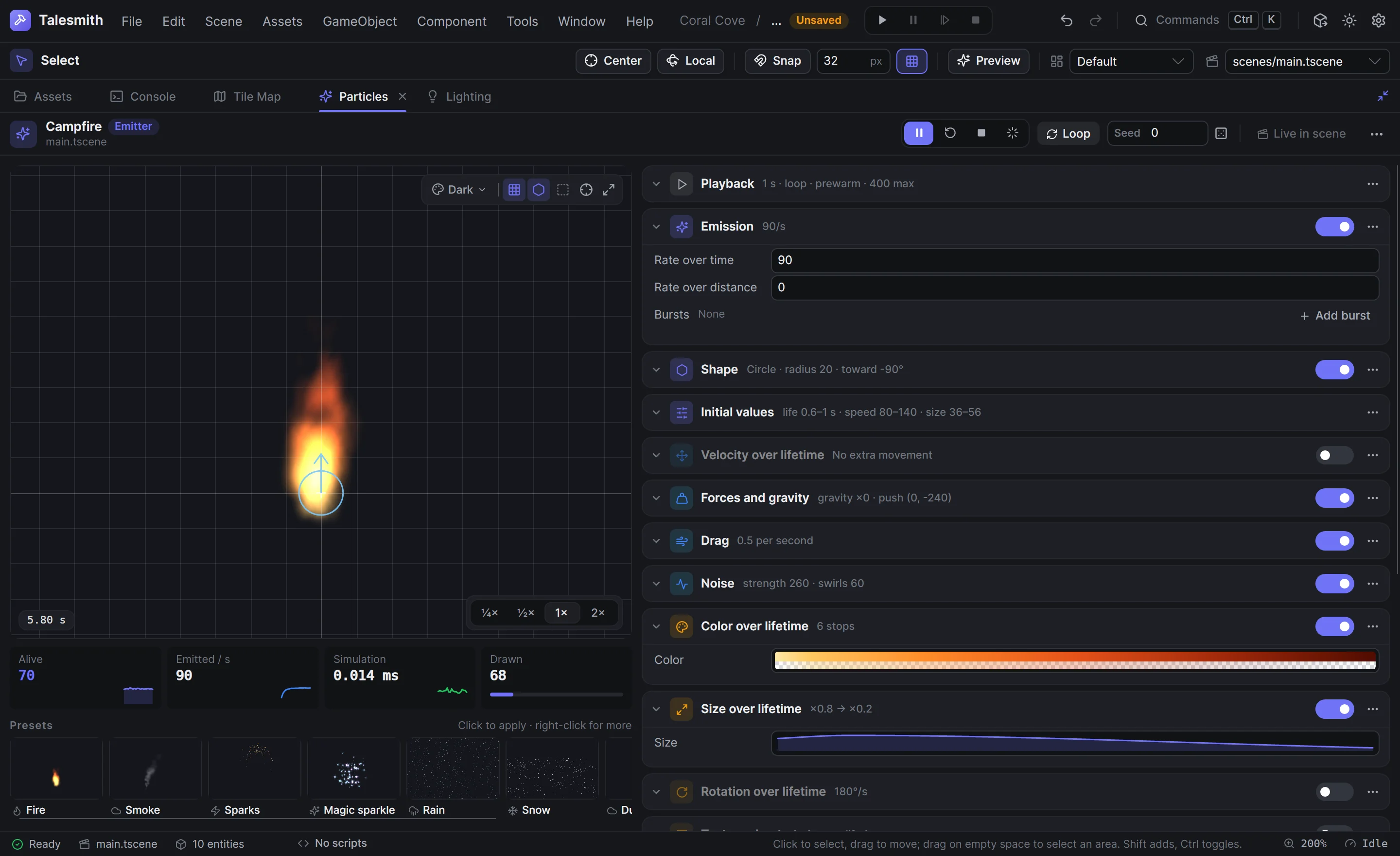

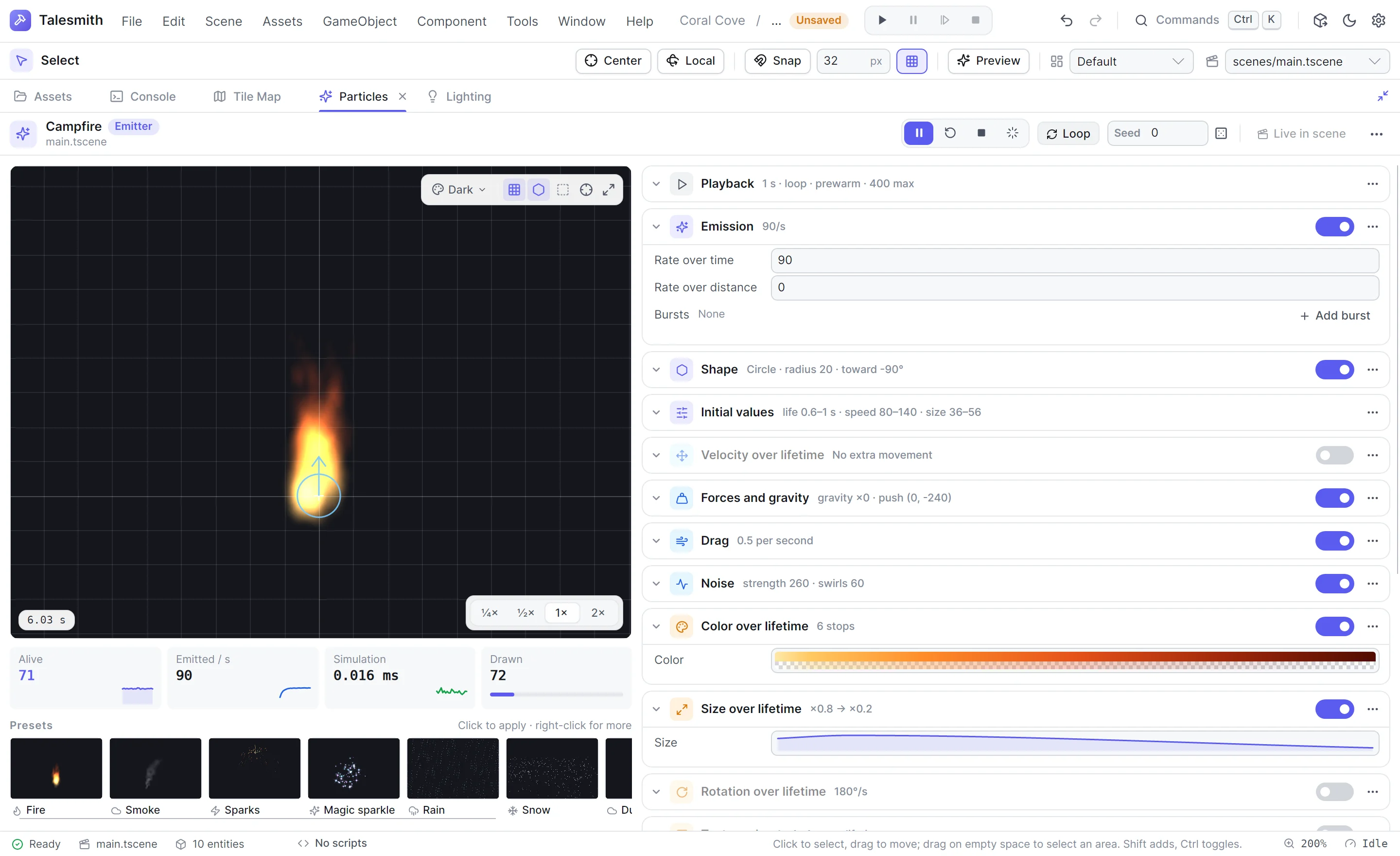

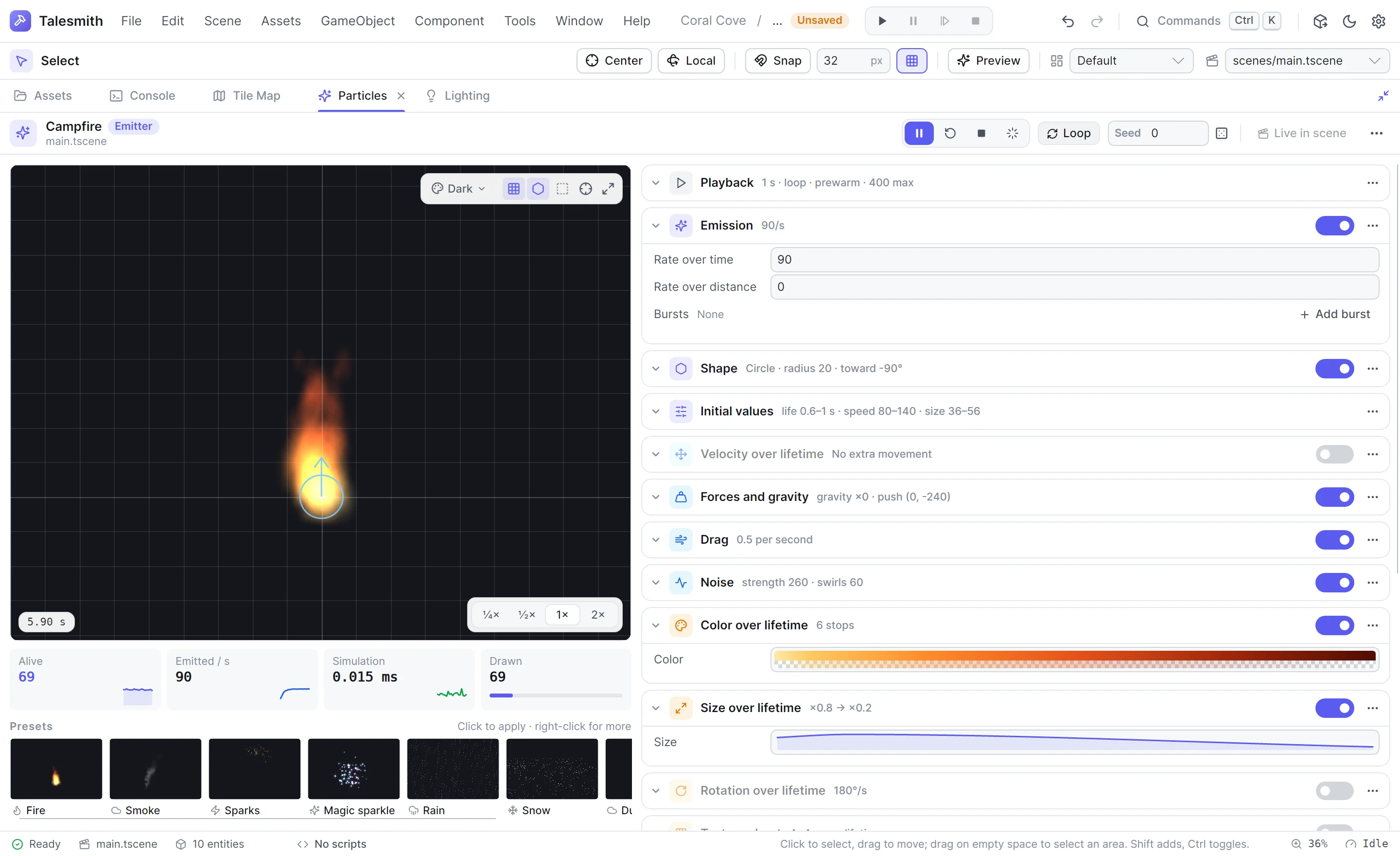

The particle editor
The Particles panel (Window › Panels › Particles, or the Effects layout) edits the emitter of the selected entity, or a preset file. Select an entity with an emitter and the panel shows it; select nothing and it shows the preset gallery.
The header
| Control | What it does |
|---|---|
| Play or pause | Plays or pauses the preview |
| Restart | Starts the effect again from the beginning |
| Stop | Stops emitting; particles that are alive finish their lives |
| Burst | Emits a burst now, to test effects that only burst |
| Loop | Starts a new cycle when one ends |
| Seed | A fixed seed plays the same way every time; 0 picks a new seed each time. The dice picks a random seed. |
| Live in scene | Animates particles, sprites and lights in the Scene panel as well: the same as Preview in the tool options bar |
| ⋯ | Opens, saves and links presets, collapses or expands every module, and pops out a larger preview |
The preview
The preview plays the effect on its own, away from the scene, and follows it as it grows. Scroll to zoom, drag to pan and double-click to follow the effect again. The overlay buttons choose the Background (dark, light, checker or the scene's color) and show the Grid, the Emitter shape and the Bounds. The speed buttons play at ¼×, ½×, 1× or 2×. The pop-out button opens a larger preview in its own window.
Changes to most values apply to the running effect, so it stays smooth while you drag a value; it restarts when you let go. Changes to playback and bursts restart it at once.
Statistics
Under the preview, four readouts show the effect's cost, each with a small graph of its recent history:
| Readout | Meaning |
|---|---|
| Alive | Particles alive now, with a bar of how much of the emitter's maximum is in use |
| Emitted / s | Particles emitted per second |
| Simulation | Time spent simulating this emitter per frame |
| Drawn | Particles drawn in the last frame |
Modules
The settings are grouped in modules, shown as cards. Each card has a switch, except Playback and Initial values, and a one-line summary when it is folded, such as life 0.6–1 s · speed 80–140 · size 36–56.
| Module | What it does |
|---|---|
| Playback | Duration, looping, prewarm, play on start, start delay, simulation speed and space, maximum particles, seed and culling. See Playback. |
| Emission | Particles per second, particles per distance moved (for trails), and bursts with a time, count, number of cycles, interval and probability |
| Shape | Where particles start: a point, line, rectangle, circle or ring with an arc, a cone, a hex or square cell, or a polygon; from the volume or the edge; in which direction, with spread |
| Initial values | Each particle's lifetime, speed, size, rotation, spin and color when it is born, optionally aligned to its direction and inheriting the emitter's velocity |
| Velocity over lifetime | Drift over the particle's life, orbiting around the emitter, pushing away from it, and a speed multiplier |
| Forces and gravity | A constant push, and the scene's gravity times a scale |
| Drag | Air resistance |
| Noise | Swirling turbulence, for smoke and magic |
| Color over lifetime | A gradient, including transparency, multiplied with the starting color |
| Size over lifetime | A curve multiplied with the starting size |
| Rotation over lifetime | Extra spin, scaled by a curve |
| Texture sheet | Animates through a grid of frames in the texture |
| Collision | A ground line below the emitter, and the world's colliders and collision tiles, with bounce, friction, lifetime loss and killing on impact |
| Renderer | The texture or built-in shape (soft circle, glow, disc, smoke, sparkle, streak, square), blend mode, render layer, sort order, and whether particles face their rotation, their velocity or stretch with speed |
Values that vary
The dice next to a number switches it between one value and a random range: with a lifetime of 0.6–1, every particle lives somewhere between 0.6 and 1 second. Colors work the same way, between two colors.
Curves and gradients show a preview; click it to open the curve or gradient editor. A curve maps the particle's age, from birth to death, to a multiplier: a size curve from 1 down to 0 shrinks particles as they age.
The card menu
Each card's ⋯ menu has Reset, Copy settings and Paste settings, which work between emitters and presets, so you can copy a fire's color gradient into a torch. Modules added by plugins appear as extra cards marked Plugin module, added with Add plugin module at the bottom and reordered by their grip or with Move up and Move down; see Particle modules.
Playback
| Setting | Default | What it does |
|---|---|---|
| Duration | 5 s | One cycle of emission. Bursts are timed within it. |
| Looping | on | Starts a new cycle when one ends. Off makes a one-shot effect, such as an explosion. |
| Prewarm | off | Starts a looping effect as if a full cycle had already played, so a fire is burning when the scene starts |
| Play on start | on | Plays as soon as the scene starts. Turn it off for effects a script triggers. |
| Start delay | 0 | Seconds to wait before emitting |
| Simulation speed | 1 | Plays faster or slower than the game |
| Simulation space | World | World leaves particles behind when the emitter moves, like a trail. Local carries them along. |
| Max particles | 1000 | This emitter's limit |
| Seed | 0 | A fixed seed plays the same effect every time |
| Culling | Automatic | What happens off screen. Automatic pauses looping effects and lets one-shot effects finish. |
Presets
A preset is a .tparticles file holding an effect's settings, to reuse across scenes and share between projects.
- ⋯ › Save as preset… writes the edited settings to
assets/effects/, after asking for a name. Save as preset in folder… lets you choose the folder. - ⋯ › Save as preset and link emitter… also makes the emitter play the new preset.
- ⋯ › Open preset…, or selecting a preset in the Assets panel, opens a preset file for editing. The header then shows Preset instead of Emitter, an Unsaved badge while it has changes, and Save writes the file.
- Assets › Create › Particle Preset makes a preset file from one of the built-in effects.
Linked emitters
An emitter can play a preset instead of its own settings, through its Preset field. Then a banner in the panel says which preset it plays, with two buttons: Edit preset opens the preset, and Unlink goes back to the emitter's own settings. Editing a linked preset changes every emitter that plays it, which keeps the torches of a whole game the same.

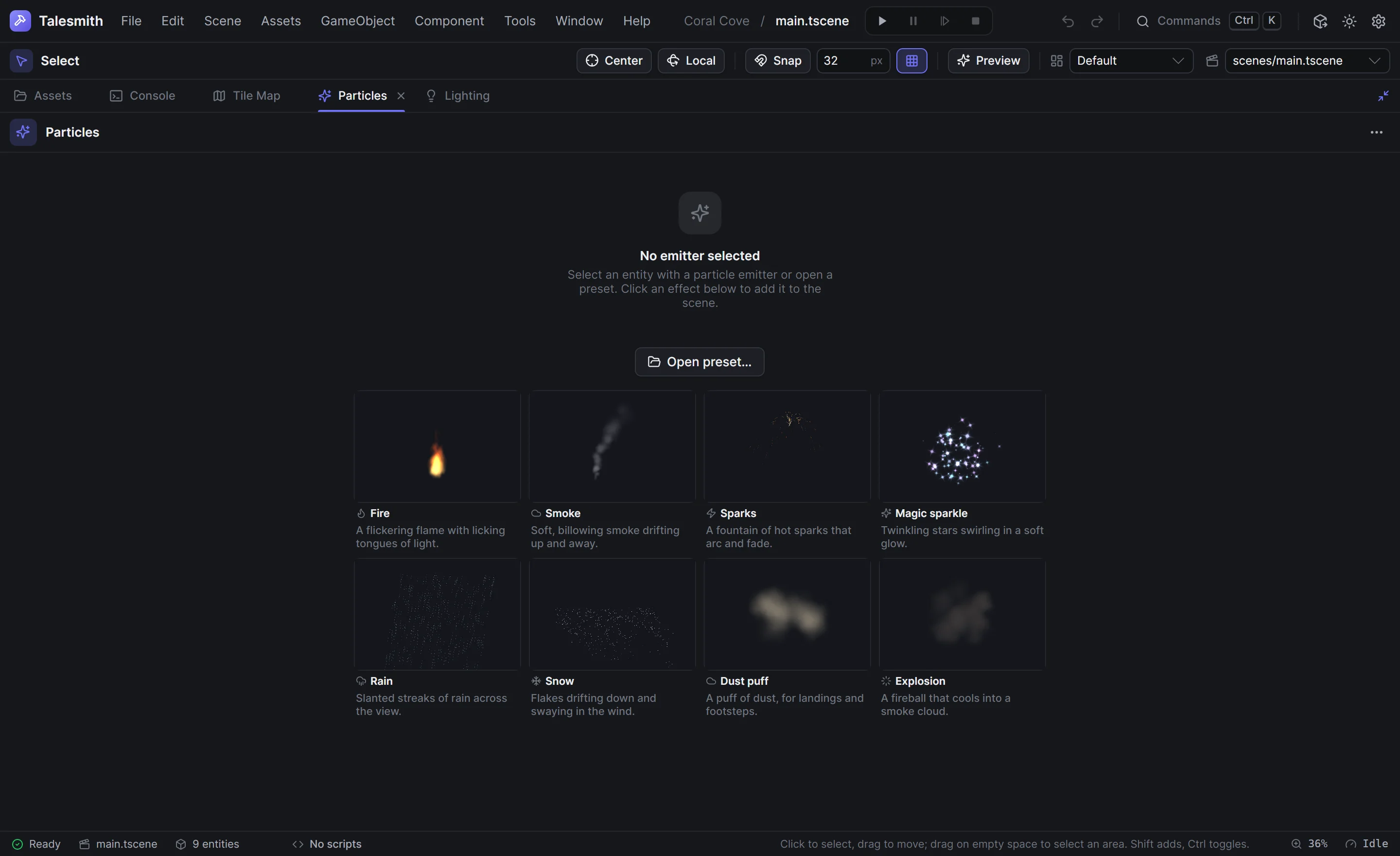

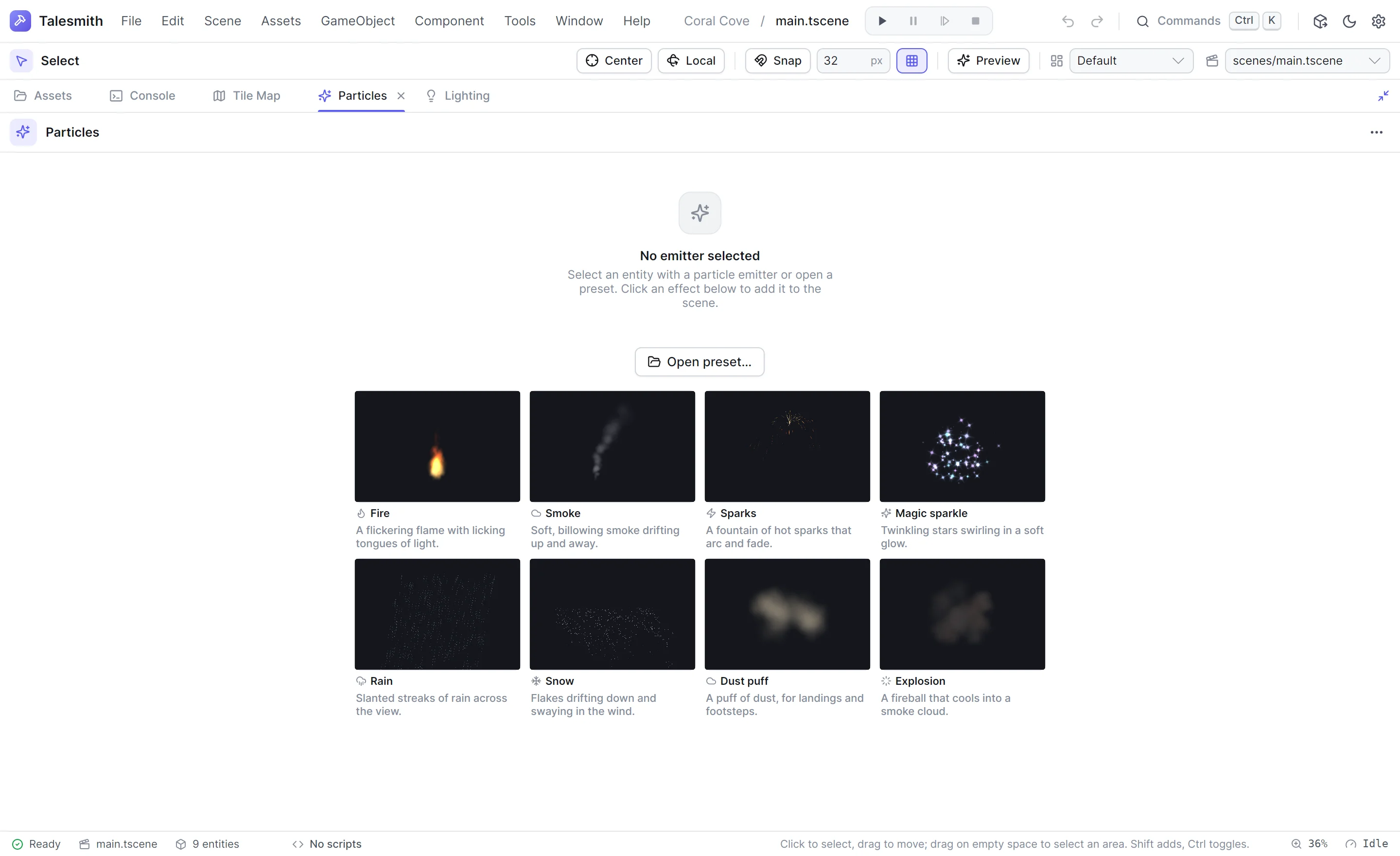

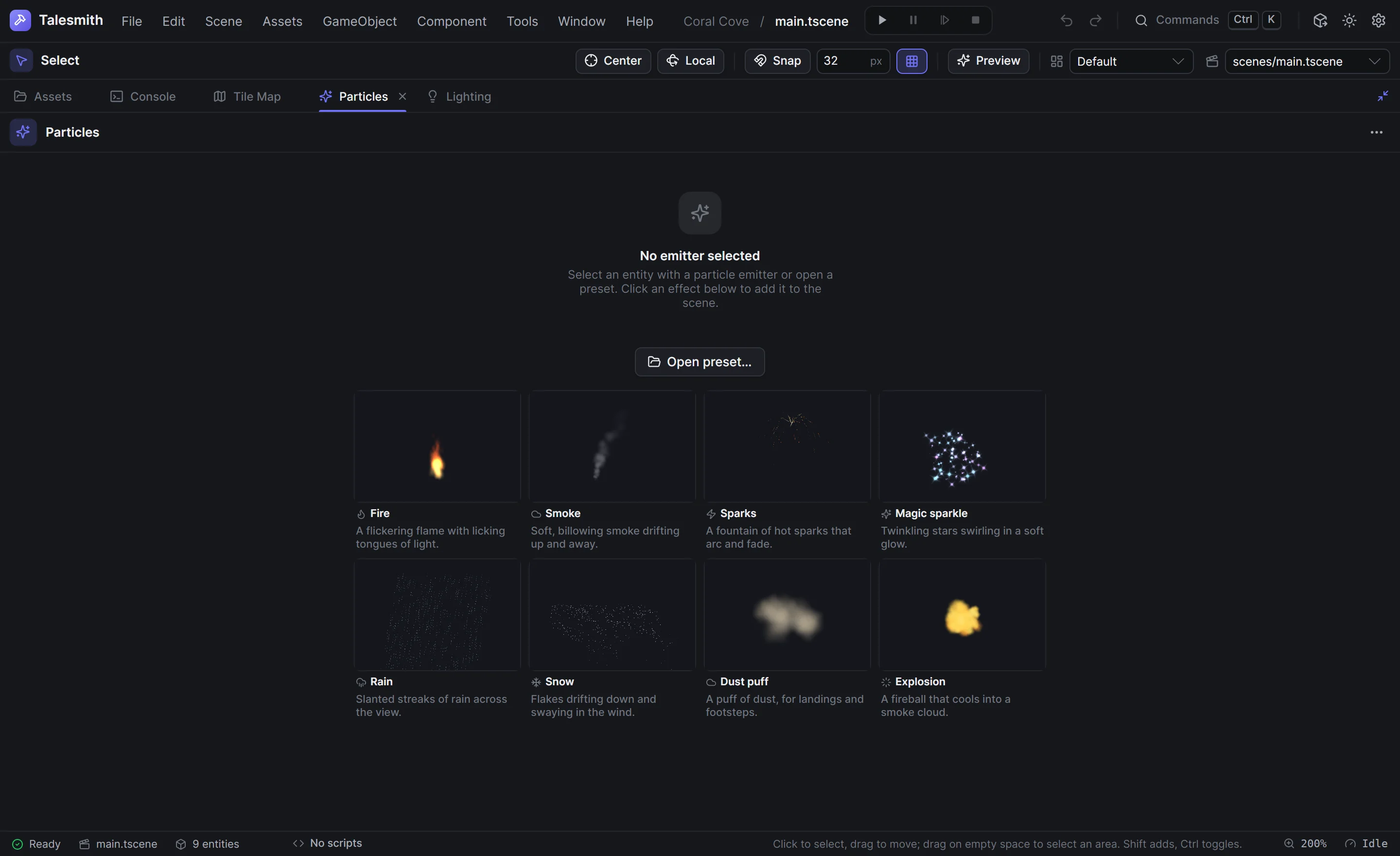

The preset gallery lists the built-in effects, marked Built-in, and the project's presets, marked Project. Click one to copy its settings into the edited effect, as one undo step. Right-click a project preset to Link emitter to this preset or Edit preset.
Budgets and level of detail
Particles are cheap: they are not entities, and each emitter is drawn as one batch. Still, a scene has a budget, 200,000 particles by default. As a scene nears it, every emitter emits a little less, smoothly, rather than late emitters getting nothing. Emitters whose particles would be smaller than a pixel or two on screen emit fewer, and emitters outside the camera's view are not drawn: looping ones pause, one-shot ones keep going so they end on time.
Watch Alive and Simulation in the panel's statistics to keep effects reasonable, and lower Max particles on emitters that never need many. The performance overlay (F3 in a running game) shows the particle counts of the whole scene. See Performance.
Each emitter has one texture and blend mode. For layered effects, such as fire with smoke above it, use one emitter per layer, as child entities of one parent.
Trigger effects from scripts
Scripts play, stop and burst emitters: an explosion when an enemy dies, a puff of dust when the player lands. Turn off Play on start and Looping for such effects, and call them from code. See Particles in the scripting section.
