Materials and shaders

A material decides how a sprite is blended with what is behind it and, optionally, runs a custom shader on its pixels: a white flash when an enemy is hit, a dissolve, a color swap. Post effects run a shader over the whole finished frame, such as a vignette or a color grade. This page covers material and shader files, what you can set up in the editor and what needs code, and which renderer runs what.

note

Materials are assets you create in the editor, but there is no material editor yet: you edit the file's few lines in a text editor, and you assign materials and post effects from code. This page shows both.

Blend modes

Every sprite is drawn with a blend mode. Without a material it is Alpha, the normal mode where transparent pixels let the background show through.

Blend	Effect	Use for
Alpha	Normal transparency	Almost everything
Additive	Adds the sprite's color to what is behind it, brightening it	Glows, fire, magic, light beams
Multiply	Multiplies what is behind it by the sprite's color, darkening it	Shadows, tints, stains
Opaque	Ignores transparency	Large backgrounds without transparent pixels

Particle emitters have their own Blend setting in their Renderer module, so effects do not need a material for this.

Create a material

Choose Create › Material in the Assets panel, or Assets › Create › Material. The editor creates New Material.tmaterial in the open folder and lets you rename it.

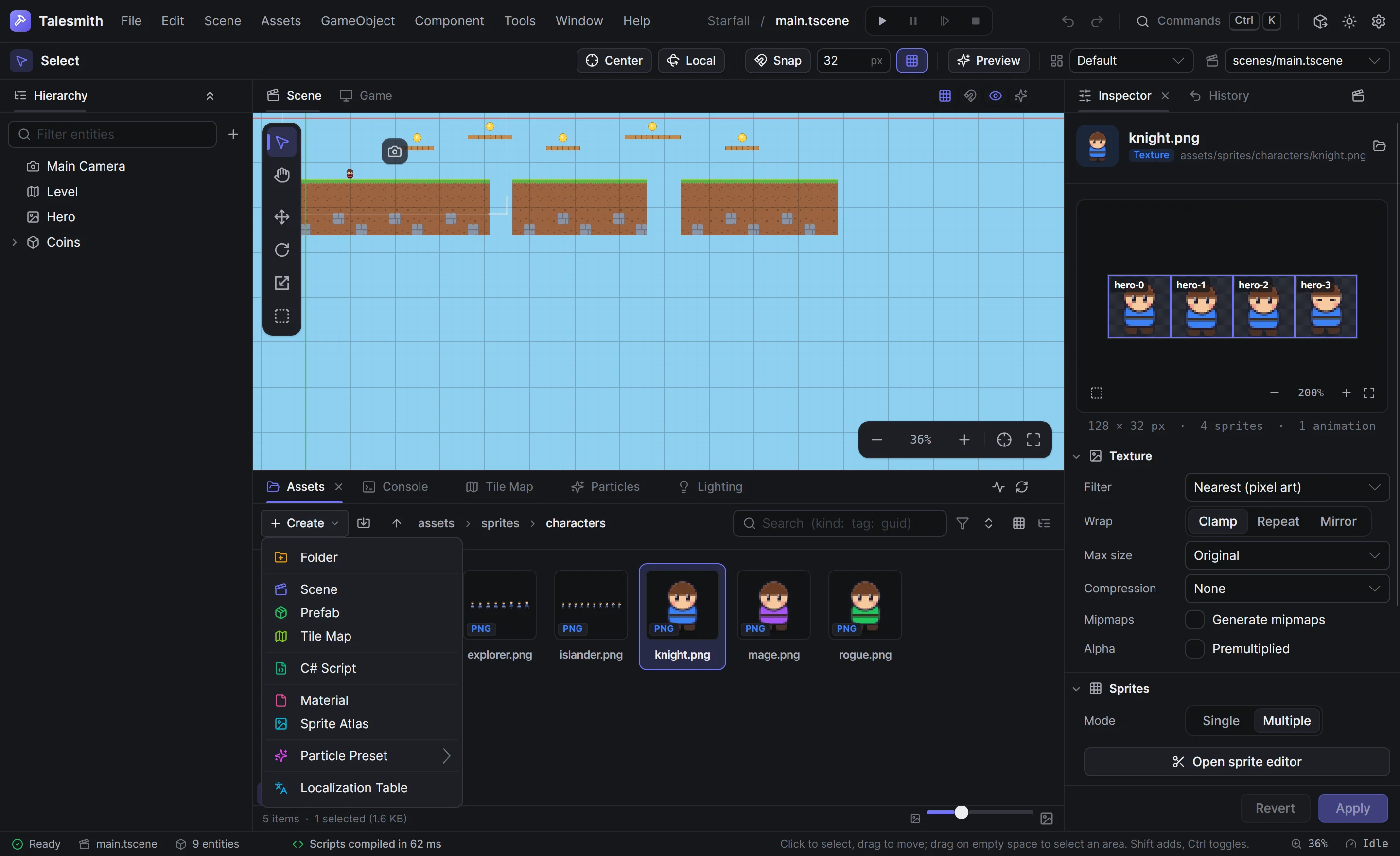

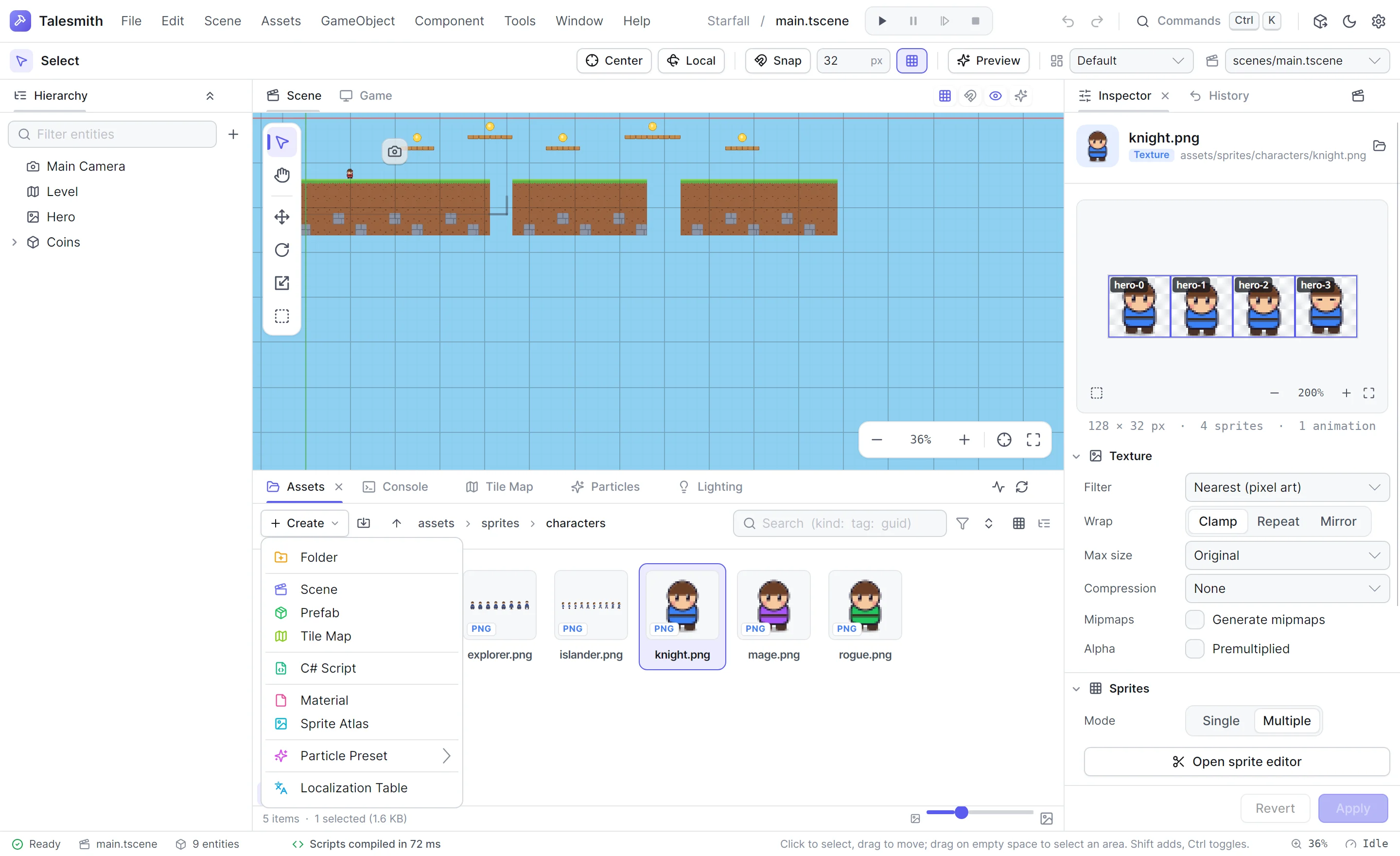

The Create menu of the Assets panel, with Material under the rendering assets.

A new material uses alpha blending and no shader. Open the file in a text editor to change it:

assets/materials/hit-flash.tmaterial

{
  "version": 1,
  "blend": "alpha",
  "shader": "shaders/flash.tshader",
  "parameters": [ [1, 1, 1, 0.8] ]
}

Field	Meaning
blend	alpha, additive, multiply or opaque
shader	A .tshader file, by path relative to the material or by guid. Leave it out to only change the blend mode.
parameters	Up to four sets of four numbers the shader reads, such as a color and a strength

The editor notices the change and reloads the material.

Write a shader

A .tshader file names the shader's source for each renderer:

assets/shaders/flash.tshader

{
  "version": 1,
  "name": "flash",
  "stage": "material",
  "skSlFile": "flash.sksl",
  "spirVFile": "flash.frag.spv"
}

• stage is material for shaders on sprites, or postEffect for shaders over the whole frame.
• Skia runs SkSL, Skia's shading language, from skSlFile or inline in skSl.
• Vulkan runs SPIR-V, compiled ahead of time from GLSL.

A material shader in SkSL reads the sprite's pixels from image and the material's parameters from params:

assets/shaders/flash.sksl

uniform shader image;
uniform float4 params[4];

half4 main(float2 coord) {
    half4 color = image.eval(coord);
    return half4(mix(color.rgb, params[0].rgb * color.a, params[0].a), color.a);
}

This shader mixes every pixel toward the color in the first parameter by its fourth number: [1, 1, 1, 0.8] turns the sprite 80% white, the classic hit flash.

The editor checks a shader when it imports it: that the SkSL has a main function and declares the input its stage needs (image for materials, scene for post effects), and that the SPIR-V file is valid. Problems appear in the console. Talesmith does not ship ready-made shaders; Materials and shaders describes both languages' inputs in full.

Which renderer runs what

Games render with Vulkan when a Vulkan device is available and with Skia otherwise, so a game you share may run on either. A shader without a source for the renderer in use is skipped: the sprite is drawn as if the material had no shader, with the material's blend mode. To be safe, give every shader both an SkSL and a SPIR-V source, and test with both renderers by switching Renderer in Project Settings › Game.

Use a material

A sprite's material is set from code, usually by a script that swaps it for a moment, such as during a hit flash:

assets/scripts/HitFlash.cs

using Talesmith.Rendering;

namespace CoinRun;

/// <summary>Flashes the sprite white for a moment when Flash is called.</summary>
public sealed class HitFlash : Script
{
    private Material? _flash;

    protected override void OnStart() => _flash = Assets.Load<Material>("materials/hit-flash.tmaterial");

    public void Flash() => Run(async () =>
    {
        GetComponent<Sprite>().Material = _flash;
        await Wait(0.1);
        GetComponent<Sprite>().Material = null;
    });
}

The material is not saved with the scene, so a script sets it when it is needed; null returns to normal drawing. See Rendering, cameras and materials in the scripting section.

Post effects

A post effect is a shader with the postEffect stage, applied to the finished frame after everything else: a vignette, a color grade, a screen flash, a wobble underwater. Its SkSL reads the frame from scene, its size from resolution, the time from time and four parameters from params. Post effects are added each frame from code, so a game can switch them on and off and animate their parameters; see Rendering, cameras and materials. Both renderers run post effects.

Related

• Lighting, which changes how sprites look without shaders.
• Materials and shaders, the file formats.
